Tire, as the only part of the vehicle that contacts with the ground, its state directly determines the safety of the vehicle, but it is most easily ignored by people. Many people even do not have the concept of checking tires.
As people know, the United States has required light vehicles to be equipped with tire pressure monitoring system as standard equipment since September 1, 2007. After November 1, 2012, the European Union will not approve new passenger vehicles without tire pressure monitoring system. From November 2014, passenger vehicles without tire pressure monitoring system will not be allowed to be sold and registered in the market. Even South Korea, next door to China, listed tire pressure monitoring system as a mandatory installation item.
There was good news for Chinese users. From January 1, 2020, China began to implement the mandatory tire pressure monitoring regulations.
Recently, a document named‘performance requirements and test methods for passenger car tire pressure monitoring system’passed the mandatory national standard technical review and was officially released and implemented after being approved by the National Standards Committee. This meant that the TPMS had become a mandatory‘standard’for new cars in China. In short, from January 1, 2020, all passenger cars in production started to implement the mandatory installation of TPMS (tire pressure monitoring system).
However, the regulation in the method is to force the installation of‘abnormal tire pressure and fault alarm signal device’. From the perspective of policy requirements, there are two types of tire pressure alarm system. One is a simple alarm. The other is an abnormal situation that can be accurate to a specific wheel. Strictly speaking, these two functions are quite different. Although they can be collectively called tire pressure monitoring, there are still some differences in the ways to achieve them.
The first is more called‘tire pressure alarm’, or‘indirect tire pressure monitoring system’. That is to say, it is a kind of alarm mode realized by the vehicle speed sensor of ABS system. When the difference of tire pressure is too large, it will lead to the speed inconsistency between wheels, which is detected by ABS system, so it is inferred that there is a problem in the tire pressure of the vehicle.
The advantage of this design is low cost and no additional equipment. But the disadvantage is that the system can not measure the specific tire pressure, and the application environment has limitations. For example, if the tire pressure of four wheels changes at the same time (such as temperature, altitude and other factors), the tire pressure warning system will not give an accurate prompt, which may cause the tire to run with low tire pressure or high tire pressure for a long time.

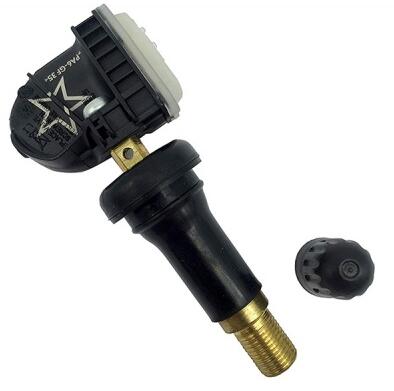

Another common function of tire pressure monitoring is to install a pressure sensor in the tire. Then it transmits the signal to the central control screen or driving computer in the car, and directly display the current pressure of each wheel in digital form. Even some sensors can display the tire temperature. This kind of tire pressure monitoring function is also very common in the aftermarket refitting, and the price is not high. Hundreds of dollars can buy large brand refitting parts.
At present, the mainstream luxury brands basically have standard configuration of tire pressure monitoring system. After all, luxury brand models generally sell at a higher price, which has a larger elastic space between profit and cost, so standard configuration of tire pressure monitoring is not difficult. But for non luxury brands, standard configuration of tire pressure monitoring is still rare.
However, there are also such brands, such as Gac Toyota. At present, it is the standard configuration of tire pressure alarm system of the whole series, which is also implemented in advance of the policy. In particular, Zhixuan, whose price is less than 70000 yuan, can be equipped with standard configuration of tire pressure alarm and ESP stabilization program of the whole series, which is really very good. It is also quite good for Leiling, Camry and other models with higher tpms sensor price to adopt the tire pressure monitoring system with digital display.
In addition to the standard configuration of tire pressure monitoring of Guangfeng's whole series, 2020 Honda Feidu, which just appeared on the market a while ago, has also added tire pressure alarm and VSA stabilization programs to the whole series.
Due to the late start of automobile industry in China, many policies and regulations are not perfect. However, with the implementation of‘performance requirements and test methods of passenger car tire pressure monitoring system’, it is believed that more and more policies related to vehicle safety will be implemented in the future. In addition to the implementation of the current tire pressure monitoring policy, it is also hoped that in the future, ESP stability procedures, airbags and other safety configurations can also become standard configuration with the assistance of the policy. In this way, the car can be safer for users.
